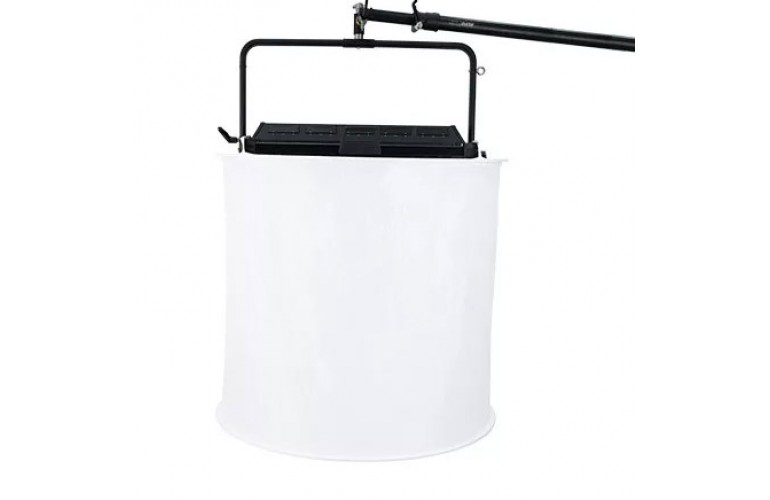

Compatible with Dyno Series LED Panel Lights, our space light
softbox will spread a 300 degree or greater beam of illumination
over a wide area of space. It is designed to hang from the Dynos,
when they are suspended by a boom or hung overhead.
The Cylinder is ideal for softly raising the ambient light level that will help reduce the apparent harsh Contrast of Kicker and or other
accent lights in the scene. It helps to accomplish this as it also opens up shadows to reveal details.

Beam Angle

315°300°
Product Sizeφ860x1000mm/33.86x39.37"
φ1110x1000mm/43.70x39.37"
Product Weight

1.4kg/3.09lb

1.42kg/3.13lb

Illumination-Dyno 650C with Space Light Softbox in CCT Boost Mode


Distance3M5M7M9M

Light Only

（without diffuser）

3200K2960 lux / 275 fc1224 lux / 114 fc661 lux / 61 fc406 lux / 38 fc
5600K3232 lux / 300 fc1336 lux / 124 fc723 lux / 27 fc443 lux / 41 fc

With softbox in Positive light-emitting surface

3200K1470 lux / 137 fc543 lux / 50 fc266 lux / 25 fc156 lux / 14 fc
5600K1615 lux / 150 fc595 lux / 55 fc294 lux / 27 fc172 lux / 16 fc

With softbox in Positive light-emitting surface attached with blackout fabric

3200K1382 lux / 128 fc456 lux / 42 fc216 lux / 20 fc135 lux / 13 fc
5600K1512 lux / 140 fc500 lux / 46 fc238 lux / 22 fc150 lux / 14 fc
With softbox in Cylindrical（side）light-emitting surface3200K805 lux / 75 fc350 lux / 33 fc186 lux / 17 fc118 lux / 11 fc
5600K879 lux / 82 fc378 lux / 35 fc

206 lux / 19 fc

130 lux / 13 fc



Illumination-Dyno 1200C with Space Light Softbox in CCT Boost Mode


Distance3M5M7M9M

Light Only

（without diffuser）

3200K5789 lux / 538 fc2322 lux / 216 fc1298 lux / 121 fc789 lux / 73 fc
5600K6086 lux / 565 fc2465 lux / 229 fc1365 lux / 127 fc826 lux / 77 fc
With softbox in Positive light-emitting surface3200K3149 lux / 293 fc1175 lux / 109 fc607 lux / 56 fc351 lux / 33 fc
5600K3326 lux / 309 fc

Dyno 650C/1200C Space light Softbox SB-SL-DN650C/DN1200C
